This post is part of three part series: Part 1: Part 2: Part 3: Install and Configure SharePoint 2013 (this post) Part 3: Install and Configure SharePoint Server 2012 Enterprise Step 1: Install SharePoint Server 2013 Prerequisites 1) Insert SharePoint Server 2013 disk on DVD drive and Double-click the setup.hta file in the installation folder to launch the installer utility 2) Run the SharePoint 2013 Products Preparation Tool: a.Click the link Install software prerequisites under the Install group. Click Next at the welcome screen to install the SharePoint Server prerequisites. 3) Accept the license and click next to run SharePoint 2013 Products Preparation tool 4) Click Finish when asked to restart the system and then log in again as SPLAB Administrator. 5) After reboot SharePoint Products Preparation Tool will continue installing rest of the applications.
Before you run the Microsoft SharePoint Products Preparation Tool. SQL Server Prerequisites. SharePoint does. I need to create a farm and would like to start. Run the preparation tool. Insert the SharePoint Server 2013 DVD and launch default.hta, or download SharePoint Foundation 2013 and run sharepoint.exe. You can find detailed information about SharePoint Products requirements for Team Foundation Server on MSDN, but this instruction will guide you through typical installations. Aug 31, 2014 When running SharePoint 2013 Product Preparation Tool prior to install SharePoint. SharePoint 2013 Product Preparation Tool prior. Start and type.
You will be asked to restart the system again. 6) After reboot SharePoint Products Preparation Tool will verify installation.
Click Finish on the “Installation Complete”. Step 3: Install SharePoint Server 2013 Enterprise 1) Browse to SharePoint 2013 installation files folder and double click “setup.exe” to launch the installation program. 2) When prompted, enter product key for SharePoint Server 2013 and click continue. 3) On the next screen accept terms of Agreement. 4) In the Choose a file location dialog, accept the default setting and click Install Now to complete the installation of SharePoint Server 2013 Enterprise. 5) When installation is completed, you are prompted with a checkbox labeled Run the SharePoint Products and Technologies Configuration Wizard now. Make sure this checkbox is checked and click Close to begin this wizard.
6) Use the Configuration Wizard Create the Configuration Database and Central Administration Web application using the SharePoint Products and Technologies Configuration Wizard a. On the Welcome to SharePoint Products page, click Next to continue.
A dialog will ask if it is OK to start, stop or reset IIS, SharePoint Administration Service and SharePoint Timer Service. Click Yes on this dialog to continue with the configuration process. On the Connect to a server farm page, Select Create a new server farm and click Next to continue. On the Specify Configuration Database Settings step fill in these settings with these value and click Next to continue.
Database server: DOMAIN01 ii. Username: SPLAB SPWorkerProcess iii. Password: password e. The next page is the Specify Farm Security Settings page add and confirm a passphrase and click Next to continue. On the Configure SharePoint Central Administration Web Application page, select the option to Specify port number and add a port number value of 9999. Leave the Configure Security Settings authentication provide settings at the default value of NTLM. Click Next to continue.
Review configuration settings in the Completing the SharePoint Products Configuration Wizard page. Click Next to begin the configuration. SharePoint will now begin configuring itself which should take 5-10 minutes depending on the performance of the hardware. When you are done, you will a page with the title of Configuration Successful.
Click the Finish when Configuration Successful screen displays j. You will be directed to a page in Central Administration at the URL of Step 3: Configure SharePoint Server 2013 Configure the farm’s service applications using the Farm Configuration Wizard. 1) The first dialog of the Farm Configuration Wizard asks you whether you want to participate in the Customer Experience Improvement Program. Select the option No, I don’t wish to participate and click OK to continue. 2) The next page of the wizard asks How do you want to configure your SharePoint farm? Select the option Yes, Walk me through the settings using the wizard.
Click Start the Wizard to continue. 3) Next page of the Farm Configuration Wizard asks you to select a service account for running the farm’s service applications.
Select the option to Use existing managed account and make sure the domain account SPLAB SPWorkerProcess is selected. You do not need to change anything in the Services section because you can accept the default selections. Click Next to continue. Now the Configuration Wizard is going to run for a while. 4) In addition to provisioning the farm’s service applications, the Farm Configuration Wizard also creates a new Web Application using the URL of the machine name and asks you if you want to create a new site collection at the root. Give it a Title of SP 2013 Lab, Select the site template named Team Site and click OK to continue.
5) Now you are finished with the Farm Configuration Wizard. Click Finish. When the Farm Configuration Wizard completes, it will redirect you to the home page of the Central Administration application.
Note TFS 2018 and later versions no longer support native integration with SharePoint products. If you're planning to upgrade to TFS 2018, read to learn about the options available to you. This procedure is for installing and configuring SharePoint Server 2013 on the same server as TFS and SQL Server. We’re going to install SharePoint after we install SQL Server, so that we can use the same Database Engine instance we installed for TFS for our SharePoint deployment, although using the same SQL Server instance for both SharePoint and TFS is not a requirement. Tip Installing SharePoint on the same server as TFS isn’t a requirement either.
TFS is very flexible with regard to the topology of your SharePoint installation. See “What If I Already Have SharePoint?” later. Do I even need SharePoint?
SharePoint is a collaboration website product that offers deep integration with Office products like Word, Outlook, and Excel. Although it’s not a TFS requirement, some teams do find its features useful. SharePoint is different from the Team Web Access site that comes with TFS. Team Web Access is a website that mirrors Visual Studio features and offers functionality for certain specialized team collaborations that relate to creating software projects. You get Team Web Access by default when you install TFS. You don’t need to add SharePoint to your initial TFS installation.
You can always install TFS first, add SharePoint later, and then manually hook up each of your TFS team projects to SharePoint. What will I need? Assuming you still want SharePoint in your TFS deployment, you’ll need a single domain account to act as the TFS Report Reader account. TFS uses this account to generate reports.
(Even if you don’t set up SharePoint, you’ll need a report reader account to generate reports). We’re going to use the report reader account for reports, but we’ll also use it as the Farm Administrator account for our SharePoint installation, just as TFS would during a standard install. Tip Don’t put the report reader account in the Windows Administrators security group.
It just needs the Allow log on locally permission, which all domain accounts have by default. Free SharePoint vs. Paid-for SharePoint For each version of SharePoint, Microsoft delivers a free version and a paid-for version with additional functionality. TFS always comes with one of the free versions. However, TFS supports both versions and the instructions for installing either are very similar. Acrobat x pro serial number. If you use the enterprise edition of SharePoint Server, as we are going to in this topic, you must make a few additional SharePoint configurations after you install SharePoint (and before you install TFS) to enable TFS dashboard functionality on the SharePoint site.
If you install any other version of SharePoint, you can skip the extra dashboard configurations in this topic. You’ll still get some dashboard functionality, but not as much as if you had the enterprise edition of SharePoint Server. Dashboard differences between SharePoint products Team Foundation Server contains dashboards that use SharePoint Products features to display team data. The dashboards that are available to you depend on the version of SharePoint that you use.
If you use any supported enterprise edition of SharePoint Server, you get five dashboards that are based on Microsoft Excel. If you use any other SharePoint Product (including the standard editions of SharePoint Server), you get two dashboards that are based on SQL Server Reporting Services. What if I already have SharePoint? If your existing SharePoint installation meets the TFS requirements for SharePoint, you can and then integrate it with TFS. Before you verify, review the. Tip You can use a remote SharePoint installation—an instance of SharePoint that is not installed on the TFS server—but to do this you’ll need to install the TFS extensions for SharePoint on the SharePoint server. To install SharePoint 2013 products for TFS Required Permissions You must be a member of the Windows Administrators security group on the computer where you install SharePoint Products and where you host its databases.
Before you install any SharePoint 2013 product, run the SharePoint 2013 Products preparation tool. After preparing the server, you’ll install SharePoint, and then do whatever post installation configuration tasks are appropriate for the product you just installed. Remember that you’ll need a single domain account to act as the TFS Report Reader account to install SharePoint Server 2013. Run the preparation tool. Insert the SharePoint Server 2013 DVD and launch default.hta, or and run sharepoint.exe. You can find detailed information about on MSDN, but this instruction will guide you through typical installations. Choose Install software prerequisites.
On the Welcome page, choose Next. On the license agreement page, accept the terms of the license and choose Next. Depending on the state of your computer, the installer might prompt you to restart the machine. Follow any instructions. After a restart, you might have to run the SharePoint Products prep tool again, if it doesn’t start automatically. Repeat the previous four steps for manual restarts until you get a success message.
At completion, choose Finish. Run the SharePoint installation Once the SharePoint Products Preparation tool finishes, you might have to launch the SharePoint installer again, especially if you had to restart your computer. Remember that you’ll need a single domain account to act as the TFS Report Reader account to complete this section.
See “What will I need?” earlier in this topic. Insert the SharePoint Server 2013 DVD and launch default.hta, or run sharepoint.exe (for SharePoint Foundation installations). Choose Install SharePoint Server this time (or Install SharePoint Foundation). If you are installing SharePoint Server, type your product key, and choose Continue. Read and accept the agreement. Choose Continue. On the Server Type tab, choose Complete.
Choose Install Now. When the installation wizard finishes, a dialog box appears that prompts you to complete the configuration of your server.
In that dialog box, verify that the Run the SharePoint Products and Technologies Configuration Wizard now check box is selected. Choose Close to start the configuration wizard.
On the Welcome page, choose Next. Tip You can use the same account here that you will use for the report reader account. Even if you use the report reader account here, the account you use to run the wizard will also be added to the SharePoint Farm administrators group.
Type a password in Passphrase and confirm it. On the Configure SharePoint Central Administration Web Application page, select the Specify port number check box, and type 17012.
You can use the randomly generated port number, but Team Foundation Server has always used 17012 as the port for the SharePoint Products administration site. Choose NTLM, and then choose Next. Review the information, and then choose Next.
Configuration begins. Choose Finish. Once the installation routine finishes, it launches the SharePoint administration site, open to the initial configuration wizard. Run the SharePoint Configuration wizards No matter which version of SharePoint you install, you must run the SharePoint Configuration wizard.
Special instructions appear in step 3 if you’re installing the enterprise edition of SharePoint Server 2013. Choose Start the Wizard.
Select Use existing managed account and choose the report reader account. If you’re installing SharePoint Server Enterprise edition, as we are, then you’ll need to select Excel Services and Secure Store Service. If you’re installing the Standard edition of SharePoint Server 2013 or SharePoint Foundation, none of the listed services are required, but you must run the wizard to succeed with your TFS installation. Even if you select no services, SharePoint will configure a site collection and some other services. Select any services you want to set up. Clear any you don’t want set up.
SharePoint selects all of them by default. Tip Remember that you can always come back later to run the configuration wizards, but to succeed with your TFS installation, you have to run it one time after the SharePoint installation. Choose Next. The SharePoint configuration begins and takes a few minutes, depending on the number of services you’re configuring. At some point during the configuration, SharePoint will prompt you to create a site collection.
Type a Title and choose Next. Choose Finish.
If you’re installing SharePoint Foundation or the standard edition of SharePoint Server, you can skip forward to TFS installation. If you’re installing SharePoint Server 2013, as we are, then configure Excel Services and Secure Store Service in the following sections. Configure Excel Services (SharePoint Server only) For TFS reports to operate correctly on a supported enterprise edition of SharePoint Server, you must also configure a trusted file location for Excel Services. In SharePoint Central Administration, under Application Management, choose Manage service applications.
On the Manage Service Applications page, choose Excel Services Application. On the Manage Excel Services Application page, choose Trusted File Locations. Choose Add Trusted File Location.
In Address, enter the URL of the root of the SharePoint site. This is the web application that the SharePoint configuration wizards created on port 80. In Location Type, choose Microsoft SharePoint Foundation. In Trust Children, select the Children trusted check box. In the External Data section, under Allow External Data, choose Trusted data connection libraries and embedded. (Optional) Clear the Refresh warning enabled check box. In Maximum Concurrent Queries Per Session, change the number to 20 and choose OK.
Internet Explorer Launch Sharepoint At Startup
The trusted file location you just created appears in the Excel Services trusted file location list. Configure Secure Store Service (SharePoint Server only) To configure the secure store service, you must create a target application for the secure store.

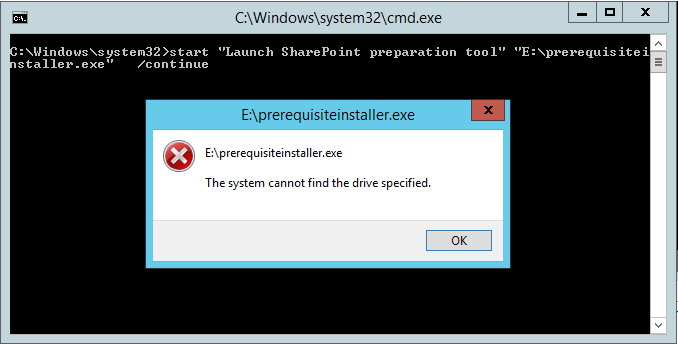

Start Launch Sharepoint Preparation Tool
In SharePoint Central Administration, under Application Management, choose Manage service applications. On the Manage Service Applications page, choose Secure Store Service. Choose New to create a secure store target application for Team Foundation Server. Tip You do not have to use TFS for Target Application ID or Display Name, but take note of whatever you use here, because you will need it to configure Team Foundation Server later. In Contact E-mail, type the e-mail address of the person or group you want email messages about this application to be sent to. In the Target Application Type list, choose Group.
In Target Application Page URL, choose None. In Specify the credential fields for your Secure Store Target Application, accept the default settings for the credential fields. In Target Application Administrators, type the administrative account for the application. In Members, enter the global security group from the domain that contains all the users to whom you want to grant access to dashboards and reports in Team Foundation Server. On the Secure Store Service Application page, select the check box for the target application that you just created (named TFS if you used the naming guidance that was provided earlier in this topic), and then choose Set Credentials in the ribbon. In the Set Credentials for Secure Store Target Application (Group) dialog box, enter the name and password of the report reader account for Team Foundation Server and confirm the password.
Next steps With SharePoint Server 2013 installed, you’re ready to move to the topic on TFS installation.
